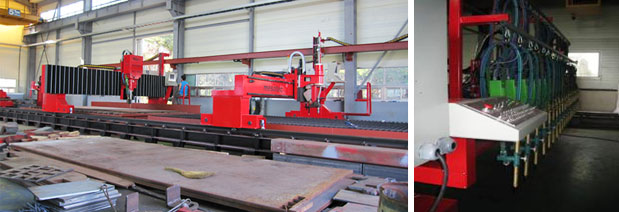

Cutting shop


Cutting shop

Model : mci - y xxxx
y refer to type of machine
xxxx refer to max. plate width in mm to be cut
- mci-g : Gas cutting machine
- mci-p : Plasma cutting machine
- mci-pg : Plasma Gas cutting machine
- mci-b : Bevel cutting machine (plasma bevel)
- mci-d : Drilling machine
- mci-c : Circular(pipe) cutting machine (plasma)

All machine adapts automatic PC-NC control

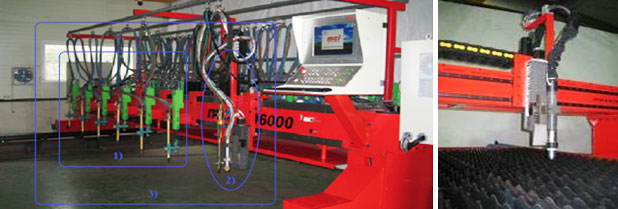

1)  CNC Gas Cutting Machine : mci-gxxx
2) CNC Plasma Cutting Machine : mci-pxxx
3) CNC Plasma-Gas Cutting Machine : mci-pgxxx
Description
Specification
Rail span
4,000 ~ 10,000 mm
Rail length (traveling)
2,000~40,000 mm
Normal moving speed
max 20 m/min for gas
max 20 m/min for plasma
Gas cutting
Speed
max 660 mm/min
Thickness
max 300 mm
Torch unit
Gas torch : 4~40 sets
Plasma cutting
Speed
max 20 m/min
Thickness
max 50 mm
Torch unit
Plasma torch : 1 or 2 set
Marking torch : 1 set
Control system
Control system PC-NC control
Communication
PC to PC
Plasma type

Ampare
Max, cutting thickness(mm)
Plasma
types
100
19
130
25
260
36
400
50
800
75(SUS)


Cutting shop

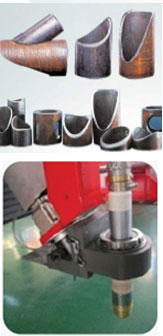

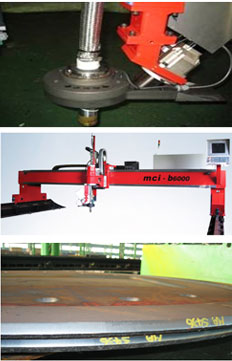

4) CNC Plasma Bevel Cutting Machine : mci-bxxx
Description
Specification
Rail span 4,000 ~ 10,000 mm
Rail length (traveling) 2,000~40,000 mm
Normal moving speed max 20 m/min
Normal beveling speed max 20 m/min
Cutting thickness max 50 mm
Torch unit Plasma torch : 1 set
Marking torch : 1 set
Beveling angle -40 ~ 45 ¡Æ
Rotation angle of R-axis Unlimited
Control system PC-NC control
Communication PC to PC
Cutting shop

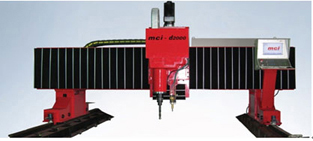

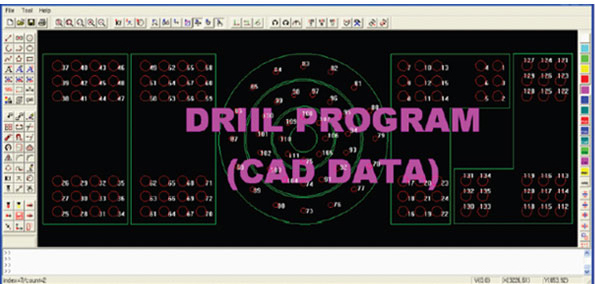

5) CNC Drilling Machine : mci-dxxx
Description
Specification
Width max 10,000 mm
Length max 20,000 mm
Up-down stroke 500 mm
Normal moving speed max 20 m/min
Normal marking speed max 15 m/min
Drilling thickness max 38 / 45 mm
Drilling diameter max ¦40 mm
Drilling spindle 1 set
Marking torch 1 set (Option)
Control system PC-NC control
Communication PC to PC

Cutting shop Cutting shop

Cutting shop

Cutting shop

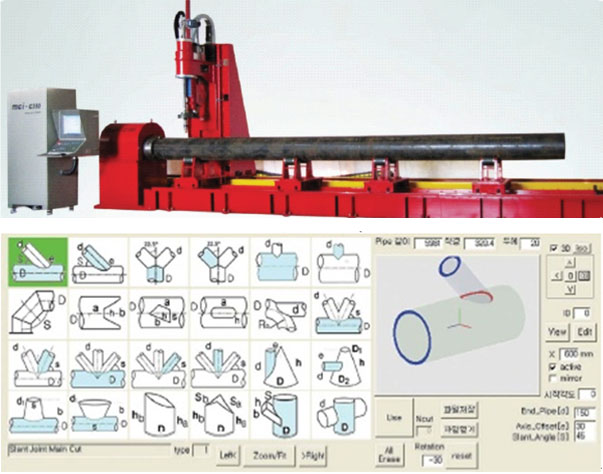

6) CNC Pipe Circular Cutting Machine : mci-cxxx
Description
Specification
Pipe diameter ¦ 350 / 600 / 900 / 1,500 mm
Pipe length 6,000 / 12,000 mm
Max cutting thickness 20 / 38 / 45 mm
Normal moving speed max 20 m/min
Normal marking speed max 15 m/min
Beveling angle -40 ~ 45 ¡Æ
Kinds of cutting type 16 kinds
Control system PC-NC control
Communication PC to PC
Cutting shop

Cutting shop
